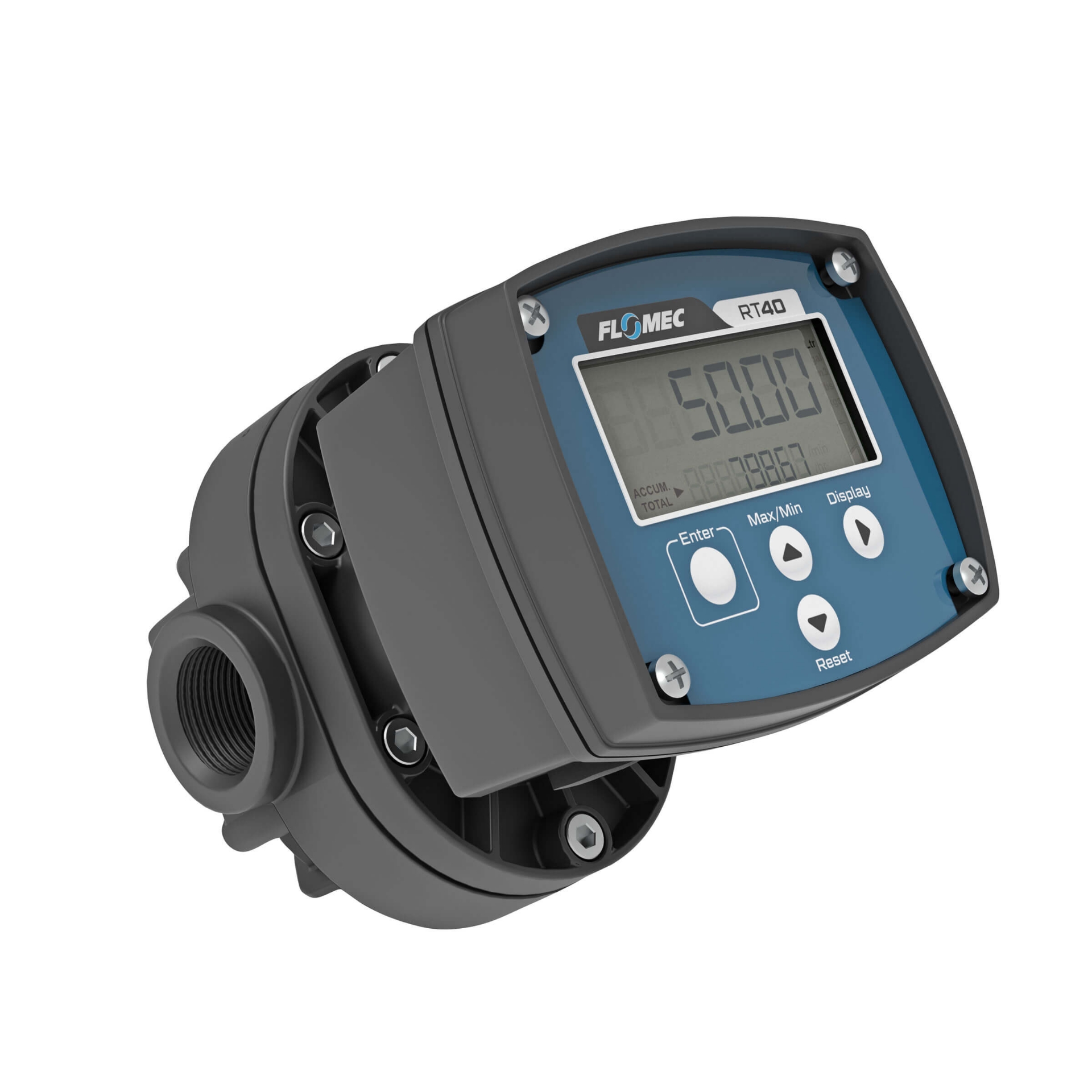

Oval Gear Meter, Poly, 1" FPT, 2.6 to 40 GPM, with Local RT40 Totalizer Readout Display, Viton/FKM O-ring

GPI FLOMEC® Poly Chemical Flow Meters provide precision volumetric flow measurement for fluid transfer processes such as batching and dosing and are ideal for applications where stainless steel is not suited or permitted. These 1" poly oval gear flow meters feature PPS rotors (no bearing), delivering highly accurate, repeatable readings of flow rates across both high- and low-viscosity liquids. Poly meter housings with 1" FPT inlet/outlet ports. Local readout models include a RT40 flow rate totalizer with backlit LCD display programmable to display re-settable (batch) total, cumulative total, and instantaneous flow rate in either gallons or liters per minute.

Usable with a wide range of water-based liquids, aggressive chemicals, most petroleum products including fuels, oils, and lubricants, and Diesel Exhaust Fluid (DEF).

• RT40 rate totalizer with backlit large-digit LCD Display
• PPS Rotors, No Bearing
• FKM (Viton™) 5º F minimum (-15º C) O-Ring
• High accuracy & repeatability, direct reading flow meter
• No requirement for flow conditioning (straight pipe runs)
• Measures high & low viscosity liquids
• Quadrature pulse output option & bi-directional flow

Flow Range: 2.6 - 40 GPM (10-150 L/min) @ 3cP
Accuracy of Reading: +/- 0.5%
Type: Oval Gear
Working Pressure: 174 PSI (12 bar)
Max Working Temp: 176° F (80° C) Maximum
Inlet/Outlet: 1" FNPT
Warranty: 2-year
Approvals: CE, NEMA 4, IP65
