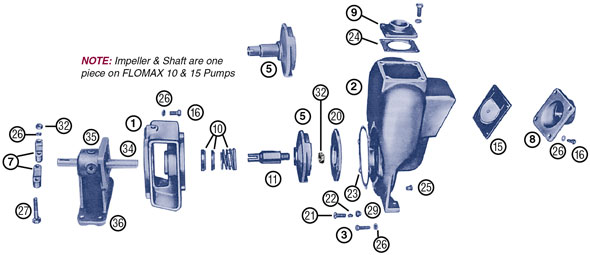

MP Flomax Pumps Repair Parts Exploded View for Flomax 10 Flomax 15

Flomax 10 & 15 Pump Repair Parts

Cast Iron Models Only

Overhaul Kit Includes all starred items above and includes parts to repair both "Old Style" and "New Style" (Jan. 2012 or later) Flomax Pumps.

Impeller & Shaft are one piece on FLOMAX 10 & 15 Pumps.

MP / Flomax Pump Repair Available. Please call 1-888-677-5054 for more information.

Viton® is a registered trademark of DuPont Performance Elastomers.

Manufacturer:

Part No.	Catalog	Description	Price
SKU: MX22361	Catalog: E0221	Description: *Ref #10 Viton® Mechanical Seal Assembly Flomax 10 & Flomax 15	Price: $103.00 / EA	i h
SKU: MX22240	Catalog: E0221	Description: *Ref #23 Gasket Flomax 10 & Flomax 15	Price: $4.95 / EA	i h
SKU: MX29715	Catalog: E0221	Description: Ref #23 O-Ring for 2012 & Later Models	Price: $9.58 / EA	i h
SKU: MX22566	Catalog: E0221	Description: OVERHAUL KIT (Includes all *Starred Items) Flomax 10 & Flomax 15	Price: $494.00 / EA	i h
SKU: MX23038	Catalog: E0221	Description: *Ref #5 & #11 Impeller with Shaft Sleeve (one piece); 6" Impeller Flomax 10 & Flomax 15	Price: $253.00 / EA	i h
SKU: MX23040	Catalog: E0221	Description: Ref #15 Buna Flapper (23040 Buna) (33626 Viton®)	Price: $94.80 / EA	i h
SKU: MX37138	Catalog: E0221	Description: Ref #24 Viton® O-Ring (for 2012 & Later Models), Flomax 10 & Flomax 15	Price: $7.80 / EA	i h
SKU: MX26101	Catalog: E0221	Description: Ref #24 EPDM Gasket (for All Model Years)	Price: $10.40 / EA	i h
SKU: MX22376	Catalog: E0221	Description: *Ref #20 Wear Plate Kit Flomax 10 & Flomax 15	Price: $80.40 / EA	i h
SKU: MX26461	Catalog: E0221	Description: Ref #10 Severe Duty Seal Flomax 10 & Flomax 15	Price: $245.00 / EA	i h
SKU: MX22348	Catalog: E0221	Description: Ref #1 Adapter, Belt Pedestal or Direct Drive & Adapter for 8 HP Briggs, Honda & Wisc for Flomax 10 & Flomax 15	Price: $291.00 / EA	i h
SKU: MX25474	Catalog: E0221	Description: Ref #36 Ball Bearing Flomax 10 & Flomax 15	Price: $51.00 / EA	i h
SKU: MX26100	Catalog: E0221	Description: Flapper Assembly, EPDM For Flomax 10/15, Repair Parts	Price: $84.00 / EA	i h
SKU: MX23039	Catalog: E0221	Description: Ref #7 Impeller Clamp Flomax 10 & Flomax 15	Price: $63.40 / EA	i h
SKU: MX37115	Catalog: E0221	Description: Ref #21 Flat Head Screw (2012 & Later Models) Flomax 10 & Flomax 15	Price: $1.96 / EA	i h
SKU: MX22468-B	Catalog: E0221	Description: Ref #8 Inlet Flange 3" Flomax 10 & Flomax 15	Price: $93.80 / EA	i h
SKU: MX26164	Catalog: E0221	Description: Ref #36 Pedestal Assembly Flomax 10 & Flomax 15	Price: $473.00 / EA	i h
SKU: MX26162	Catalog: E0221	Description: Ref #36 Shaft - 1" Flomax 10 & Flomax 15	Price: $109.00 / EA	i h
SKU: MX22471-B	Catalog: E0221	Description: Ref #9 Outlet Flange 3" Flomax 10 & Flomax 15	Price: $77.80 / EA	i h
SKU: MX22425	Catalog: E0221	Description: Ref #35 Woodruff Key Flomax 10 & Flomax 15	Price: $2.37 / EA	i h
SKU: MX22035	Catalog: E0221	Description: Ref #36 Snap Ring Flomax 10 & Flomax 15	Price: $6.39 / EA	i h
SKU: MX21271	Catalog: E0221	Description: Ref #22 Annular Gasket Flomax 10 & Flomax 15	Price: $3.09 / EA	i h
SKU: MX23035	Catalog: E0221	Description: Ref #2 Housing Assembly, Cast Iron Flomax 10 & Flomax 15	Price: $927.00 / EA	i h
SKU: MX21266	Catalog: E0221	Description: Ref #26 Lock Washer Flomax 10 & Flomax 15	Price: $0.60 / EA	i h
SKU: MX22369-B	Catalog: E0221	Description: Ref #8 Inlet Flange 2" Flomax 10 & Flomax 15	Price: $73.50 / EA	i h
SKU: MX26161	Catalog: E0221	Description: Ref #36 Pedestal Body Flomax 10 & Flomax 15	Price: $272.00 / EA	i h
SKU: MX22372-B	Catalog: E0221	Description: Ref #9 Outlet Flange 2" Flomax 10 & Flomax 15	Price: $55.00 / EA	i h
SKU: MX24721	Catalog: E0221	Description: Ref #5 Impeller with Shaft Sleeve; 5-3/4" Flomax 10 & Flomax 15	Price: $369.00 / EA	i h
SKU: MX21291	Catalog: E0221	Description: Ref #16 Capscrew Flomax 10 & Flomax 15	Price: $3.70 / EA	i h
SKU: MX21269	Catalog: E0221	Description: Ref #27 Capscrew Flomax 10 & Flomax 15	Price: $4.70 / EA	i h
SKU: MX21262	Catalog: E0221	Description: Ref #21 Flat Head Screw (2011 & Earlier Models) Flomax 10 & Flomax 15	Price: $5.46 / EA	i h
SKU: MX21260	Catalog: E0221	Description: Ref #3 Capscrew Flomax 10 & Flomax 15	Price: $11.80 / EA	i h
SKU: MX21263	Catalog: E0221	Description: Ref #29 Acorn Nut Flomax 10 & Flomax 15	Price: $4.30 / EA	i h
SKU: MX24792	Catalog: E0221	Description: Ref #5 Impeller with Shaft Sleeve; 5-1/2" Flomax 10 & Flomax 15	Price: $865.00 / EA	i h
SKU: MX37139	Catalog:	Description: Ref #24 EPDM O-Ring (37138 Viton) , Flomax 10 & Flomax 15	Price: $1.00 / EA	i h
