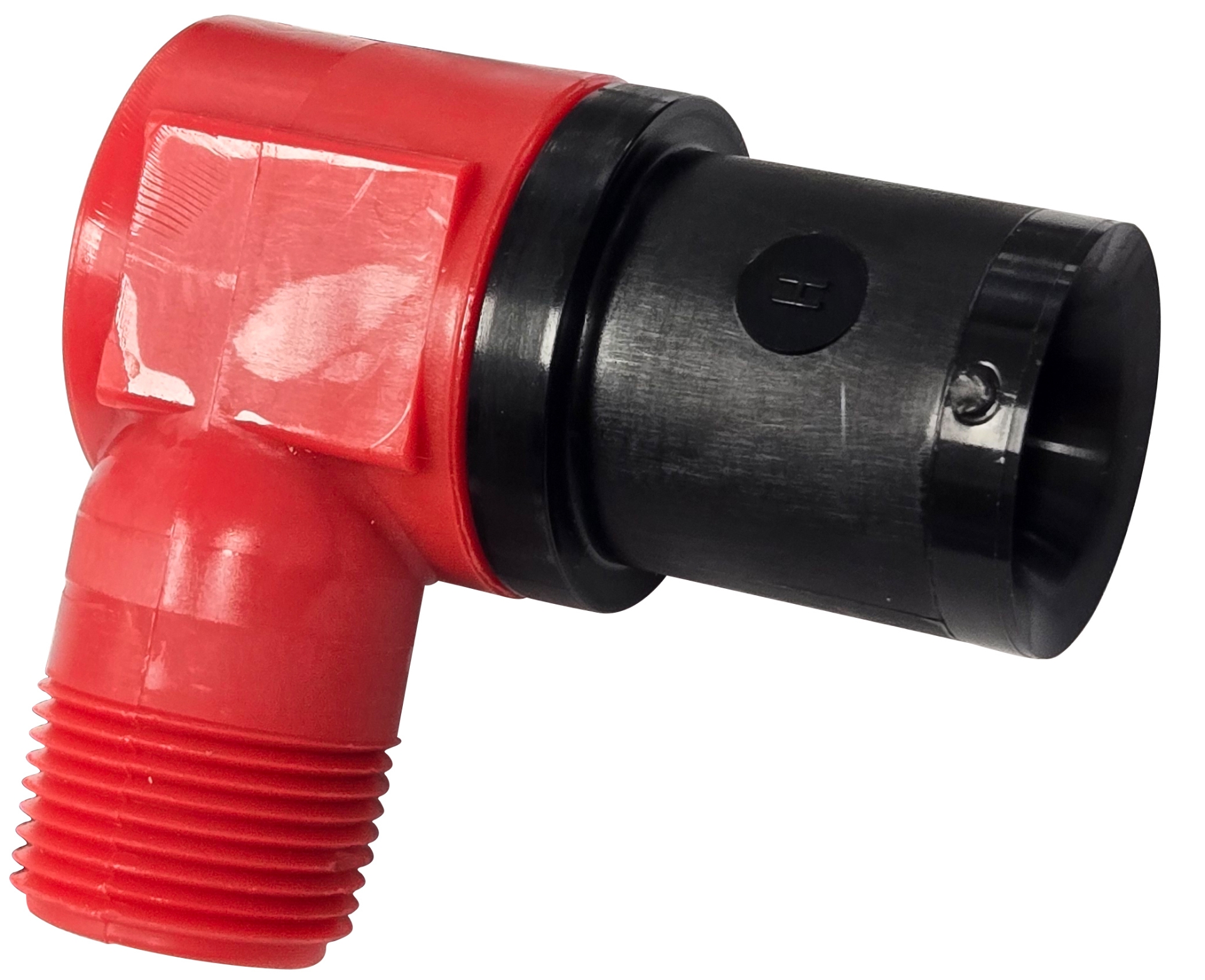

    Raindrop Hollow Cone Spray Nozzle, 3/4" RED

    Color-Coded

    Delavan Raindrop® nozzles are designed to deliver a wide-angle, hollow-cone spray pattern that minimalizes drifting in your broadcast spraying applications. The 3/4" Raindrop® hollow cone spray nozzles feature a 140° wide-angle which improves uniform spray distribution compared with flooding nozzles. A large orifice opening and passages, plus no internal vanes or distributors, combine to minimize clogging.

    Like the type-RD Raindrop® nozzles, type-RA hollow cone nozzles are engineered with a unique, patented secondary swirl chamber within the nozzle cap which alters the swirling action of the liquid, therefore increasing droplet size (810 microns @ 40 PSI) and reducing the number of driftable particles. This makes these broadcast nozzles an ideal option when spray drift is a problem. An ideal replacement for conventional wide-angle nozzles, these spray tips are great for a variety of low-drift broadcast applications with boom-type sprayers and other spraying equipment. Well suited for high-volume, high-speed applications with flotation or truck-mounted equipment.

    A 100% overlap of spray pattern is recommended for best coverage.

    Image: DLRA40NY

    Standard Features:
    • Durable thermoplastic construction
    • Wide-angle, hollow cone design
    • Large droplet sizes
    • Drastic reduction of drift potential
    • Large orifice minimalizes clogging
    • Uniform spray distribution
    • ISO color coding


    Technical Specs:
    • Type: Hollow Cone / Broadcast Nozzle
    • Body Material: Nylon/Thermoplastic
    • Tip Material: Nylon/Thermoplastic
    • Inlet Size & Thread: 3/4" MPT
    • Orifice Size: 3/4"
    • Operating PSI: 20-60 PSI
    • Max PSI: 100 PSI
    • Spray Pattern: Hollow Cone
    • Spray Angle: 140°


    Manufacturer: Delavan Ag Spray Nozzles
    $26.25 / EA
