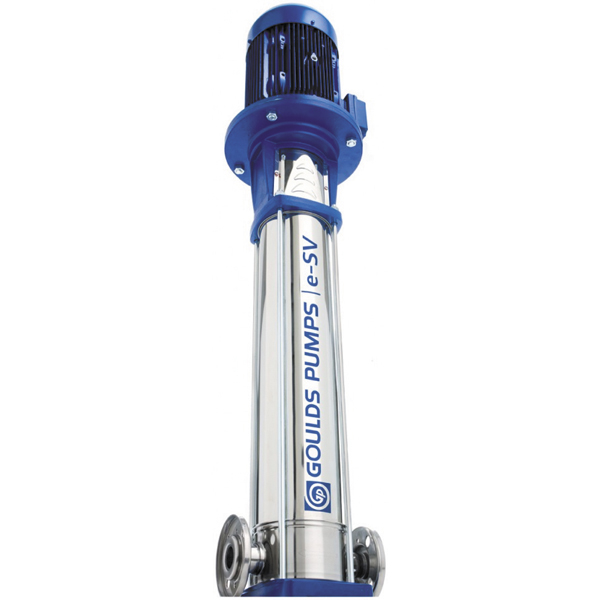

    Vertical Multi-Stage Booster Pumps, Stainless Steel, Models E-SV

    E-SV™ Stainless Pumps from Goulds Pumps. These Multi-Stage, Vertical Pump and Motor units are ideal for pressure boosting of water supplies, reverse osmosis transfer systems, agricultural irrigation, commercial washing systems, hot & cold water circulation for HVAC applications, boiler feed, etc. Multi-stage design allows for a wide range of flows from 5 to 700 gpm and pressures from 20 to 500 psi.

    Standard Features:

    • 304SS Stainless Steel construction
    • TEFC NEMA Motors (ODP also available)
    • Silicon Carbide Seal with Viton® Elastomers
    • Inline ANSI flange inlet x outlet (top/bottom fittings also available)
    • Simplified design for maximum reliability and fast repair
    • Impeller O-ring seal produces high pressure and efficiency
    • Rated to temperatures from -20° F. to +250° F.
    • Motors are 60 hz, 3500 rpm and high efficiency.
    • Optimized hydraulic design results in superior performance, efficiency and low NPSHR.


    Note: ALL PUMPS ARE SPECIAL ORDER AND NON RETURNABLE.
    * Pump Flanges are 304 Stainless ANSI Class 300, Raised Face.
    ** This model has cast iron flanges & base with 304 stainless pump end.

    Viton® is a registered trademark of DuPont Performance Elastomers

    Manufacturer: Goulds Pumps
    0Types Available
    Flange, 1-1/4" FPT, 300#, 304SS
    Flange, Threaded, 1-1/4IN, 304 Stainless, 300 Lb.
    $68.50 / EA
    i h
    Ship to

    DELAY MY SHIPMENT until all in-stock items AND backordered items are available in one warehouse before shipping. (You will receive only one freight bill if you choose this option).

    *

    Ship my in-stock items now, ship my backordered items when they become available. (You will be billed for each shipment).

    *
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options
    Flange, 2" FPT, 300#, 304SS
    Flange, Threaded, 2IN, 304 Stainless, 300 Lb.
    $105.00 / EA
    i h
    Ship to

    DELAY MY SHIPMENT until all in-stock items AND backordered items are available in one warehouse before shipping. (You will receive only one freight bill if you choose this option).

    *

    Ship my in-stock items now, ship my backordered items when they become available. (You will be billed for each shipment).

    *
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options
    Picture of Multi-Stage Vertical Booster Pump, 10hp, 3ph TEFC Motor, 208-230/460V, 50 gpm @ 234 psi, 2" Flange
    Multi-Stage Vertical Booster Pump, 10hp, 3ph TEFC Motor, 208-230/460V, 50 gpm @ 234 psi, 2" Flange
    Pump, Vertical Multistage, Stainless, 10 Hp, 3 Phase, 2IN Flange Ports, Flanges and Gaskets Not Included
    $6,042.00 / EA
    i h
    Ship to

    DELAY MY SHIPMENT until all in-stock items AND backordered items are available in one warehouse before shipping. (You will receive only one freight bill if you choose this option).

    *

    Ship my in-stock items now, ship my backordered items when they become available. (You will be billed for each shipment).

    *
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options
    Picture of Multi-Stage Vertical Booster Pump, 15hp, 3ph TEFC Motor, 208-230/460V, 53 gpm @ 260 psi, 2" Flange*
    Multi-Stage Vertical Booster Pump, 15hp, 3ph TEFC Motor, 208-230/460V, 53 gpm @ 260 psi, 2" Flange*
    Pump, Vertical Multi-Stage, 304SS, 15 Hp, 3 Phase, TEFC Motor, 208/230/460 Volt
    $6,728.00 / EA
    i h
    Ship to

    DELAY MY SHIPMENT until all in-stock items AND backordered items are available in one warehouse before shipping. (You will receive only one freight bill if you choose this option).

    *

    Ship my in-stock items now, ship my backordered items when they become available. (You will be billed for each shipment).

    *
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options
    Picture of Multi-Stage Vertical Booster Pump, 25hp, 3ph TEFC Motor, 208-230/460V, 80 gpm @ 375 psi, 2" Flange**
    Multi-Stage Vertical Booster Pump, 25hp, 3ph TEFC Motor, 208-230/460V, 80 gpm @ 375 psi, 2" Flange**
    Pump, Vertical Multi-Stage, SS, 25 Hp, 3 Phase
    $9,673.00 / EA
    i h
    Ship to

    DELAY MY SHIPMENT until all in-stock items AND backordered items are available in one warehouse before shipping. (You will receive only one freight bill if you choose this option).

    *

    Ship my in-stock items now, ship my backordered items when they become available. (You will be billed for each shipment).

    *
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options
    Picture of Multi-Stage Vertical Booster Pump, 3hp, 1ph TEFC Motor, 115/208-230V, 16 gpm @ 200 psi, 1-1/4" Flange*
    Multi-Stage Vertical Booster Pump, 3hp, 1ph TEFC Motor, 115/208-230V, 16 gpm @ 200 psi, 1-1/4" Flange*
    Pump, Vertical Multi-Stage, 304 Stainless, 3 Hp, 1 Phase, 16 Gpm, 115/208/230 Volt
    $2,914.00 / EA
    i h
    Ship to

    DELAY MY SHIPMENT until all in-stock items AND backordered items are available in one warehouse before shipping. (You will receive only one freight bill if you choose this option).

    *

    Ship my in-stock items now, ship my backordered items when they become available. (You will be billed for each shipment).

    *
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options
    Picture of Multi-Stage Vertical Booster Pump, 3hp, 3ph TEFC Motor, 208-230/460V, 16 gpm @ 200 psi, 1-1/4" Flange*
    Multi-Stage Vertical Booster Pump, 3hp, 3ph TEFC Motor, 208-230/460V, 16 gpm @ 200 psi, 1-1/4" Flange*
    Pump, Vertical Multi-Stage, Stainless, 3 Hp, 3 Phase
    $3,035.00 / EA
    i h
    Ship to

    DELAY MY SHIPMENT until all in-stock items AND backordered items are available in one warehouse before shipping. (You will receive only one freight bill if you choose this option).

    *

    Ship my in-stock items now, ship my backordered items when they become available. (You will be billed for each shipment).

    *
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options
    Picture of Multi-Stage Vertical Booster Pump, 5hp, 1ph TEFC Motor, 208-230V, 26 gpm @ 216 psi, 1-1/4" Flange*
    Multi-Stage Vertical Booster Pump, 5hp, 1ph TEFC Motor, 208-230V, 26 gpm @ 216 psi, 1-1/4" Flange*
    Pump, Vertical Multistage, SS, 5 Hp, 1 Phase
    $3,619.00 / EA
    i h
    Ship to

    DELAY MY SHIPMENT until all in-stock items AND backordered items are available in one warehouse before shipping. (You will receive only one freight bill if you choose this option).

    *

    Ship my in-stock items now, ship my backordered items when they become available. (You will be billed for each shipment).

    *
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options
    Picture of Multi-Stage Vertical Booster Pump, 5hp, 3ph TEFC Motor, 208-230/460V, 26 gpm @ 216 psi, 1-1/4" Flange*
    Multi-Stage Vertical Booster Pump, 5hp, 3ph TEFC Motor, 208-230/460V, 26 gpm @ 216 psi, 1-1/4" Flange*
    Pump, Vertical Multistage, Stainless, 5 HP, 3 Phase
    $3,850.00 / EA
